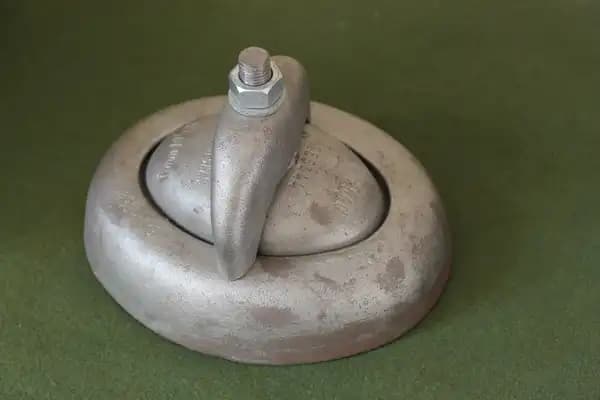

Handhole covers:
Size (D1 , D2) [mm]: 150x100
Operating temperature: -10°C ... + 120°C
Working pressure: 6 bar ... 50 bar
sR = 5 ... 12 (as a function of operating pressure)
sF = 4 ... 10 (as a function of operating pressure)
Material qualities:
Cover: P265GH (EN 10028-2)
Paddle: S235JRG2 (EN 10025)
Ring: P355NH (EN 10028-3)

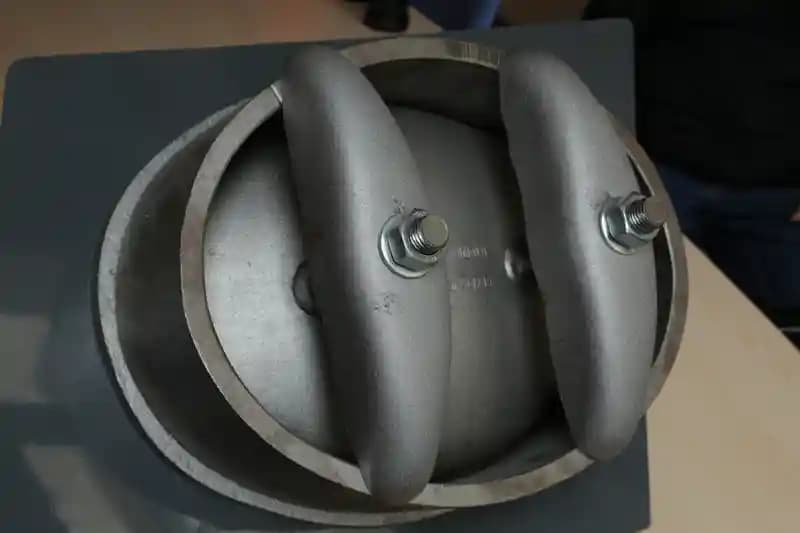

Manhole
Size (D1 , D2) [mm]: 320x420
Operating temperature: -10°C ... + 120°C
Working pressure: 8 bar ... 25 bar
sR = 15 ... 20 (as a function of operating pressure)
sF = 6,1 ... 10,7 (as a function of operating pressure)
Material qualities:
Cover: P265GH (EN 10028-2)
Paddle: S235JRG2 (EN 10025)
Ring: P355NH (EN 10028-3)
Ordering units
Assembled unit (D)
Ring (U)
Cover (Z)
Paddle (Y)
